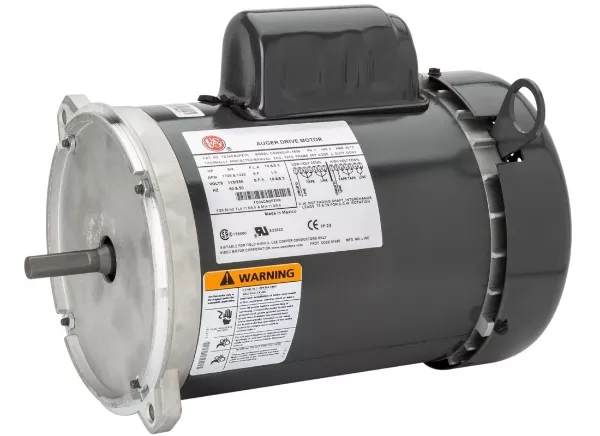

1-1/2 HP electric feed auger motor for use in swine, poultry and livestock operations.
- Totally Enclosed Fan Cooled
- Class B Insulation
- Manual Reset Thermal Overload Protector
- ODE Shaft Extension for Hand Crank
- Ball Bearings
- Reversible Rotation
- Footed
- 1 Year Warranty (from date of purchase)
Motor Specifications:
| HP | 1-1/2 |
| RPM | 1725 |
| Hertz | 60 |
| Volts | 115/230 |
| Full Load Amps | 16.2/8.1 |
| Service Factor | 1.15 |
| Frame | 56Y |
| Type (Enclosure) | TEFC |
| Shaft Diameter | 5/8″ |
| Shaft Length | 2″ |
| Shaft Shape | Flat |
| Motor Diameter | 6.5″ |
| Motor Length (w/ shaft) | 13″ |
| Motor Weight | 45 lbs |
| Mounting Bolt Length | N/A |
| Mounting Bolt Thread | N/A |
