Heated Make-Up Air Supply Fan (6500 CFM Heated 3ph)
Direct Gas Fired Heated Make Up Air Unit with 24″ Mixed Flow Direct Drive Fan and 12″ Burner.
Fan Specifications:
- 6500 CFM @ 0.652″ wc ESP
- 1551 RPM
Heater Specifications:
- 381932 BTUs
- 55ºF temperature rise
- Fuel: natural gas
Supply Motor Specifications:
- 10.000 HP
- 3 Phase
- 208 V, 60Hz
- 27.0 FLA
- ODP (Open Drip Proof)
- Down Discharge – Air Flow Right -> Left
Sloped Filtered Intake and EZ Filters
- Sloped filtered intake for Size 2 modular heater
- 37.25″ Wide X 51.625″ Long X 35.188″ High

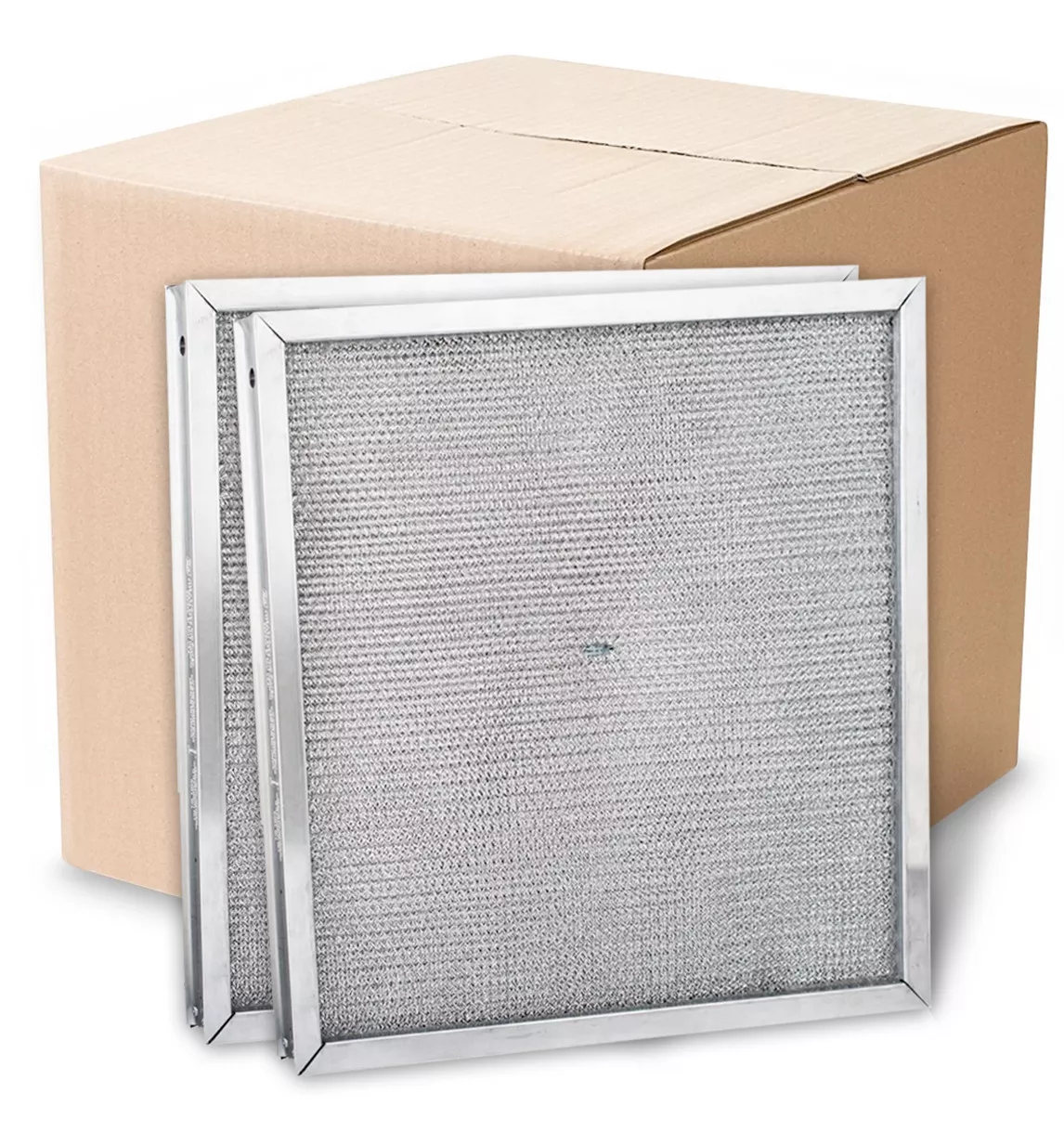

- Includes 2″ MV EZ Kleen Metal Mesh Filters
Additional Features:
- VFD factory mounted and wired in unit control vestibule
- ESV752N02TXB571 – Variable Frequency Drive – 10 HP Max., 200/240 V, Three Phase, 29.0 A Max., NEMA 1 Enclosure, with 2RJ-45 FOR MODBUS
- VAV (Variable-Air-Volume) Wiring Package for Commercial Fans. Manual Speed Control Variable Frequency Drive Included
- Motorized Back Draft Damper 30″ X 30″ for Size 3 Standard & Modular Heater Units w/Extended Shaft, Standard Galvanized Construction, 3/4″ Rear Flange, Low Leakage, NFBUP-S Actuator Included
- Gas Pressure Gauge, 0-35″, 2.5″ Diameter, 1/4″ Thread Size
- Gas Manifold for DF3 GM – BTU 0 – 1100001 – 7 in. w.c. – 14 in. w.c., No Insurance Requirement (ANSI), BV250-88
- 0-150°F Discharge Temp Control • Heating Activation Based On Intake Set Point • Manual Blower Mode.Use with MUA.
Heated (or “Tempered”) make up air units are recommended anywhere the winter temp falls below freezing. This includes the northern half of the United States (and all of Canada).
Free Ground Shipping to Contiguous United States. Canada, Hawaii, and Alaska Excluded
