Heated Make-Up Air Supply Fan (3500 CFM, 3 ph)
Direct Gas Fired Heated Make Up Air Unit with 20″ Mixed Flow Direct Drive Fan
Fan Specifications:
- 3500 CFM @ 0.4453″ wc ESP
- 1347RPM
Heater Specifications:
- 205655 BTUs
- 55ºF temperature rise
- Fuel: natural gas
Supply Motor Specifications:
- 2.000 HP
- 3 Phase
- 208V, 60Hz
- 6.1 FLA
- ODP (Open Drip Proof)
- Down Discharge – Air Flow Right -> Left
Sloped Filtered Intake and EZ Filters
- Sloped filtered intake for Size 1 modular heater
- 26.813″ Wide X 53.625″ Long X 31.313″ High

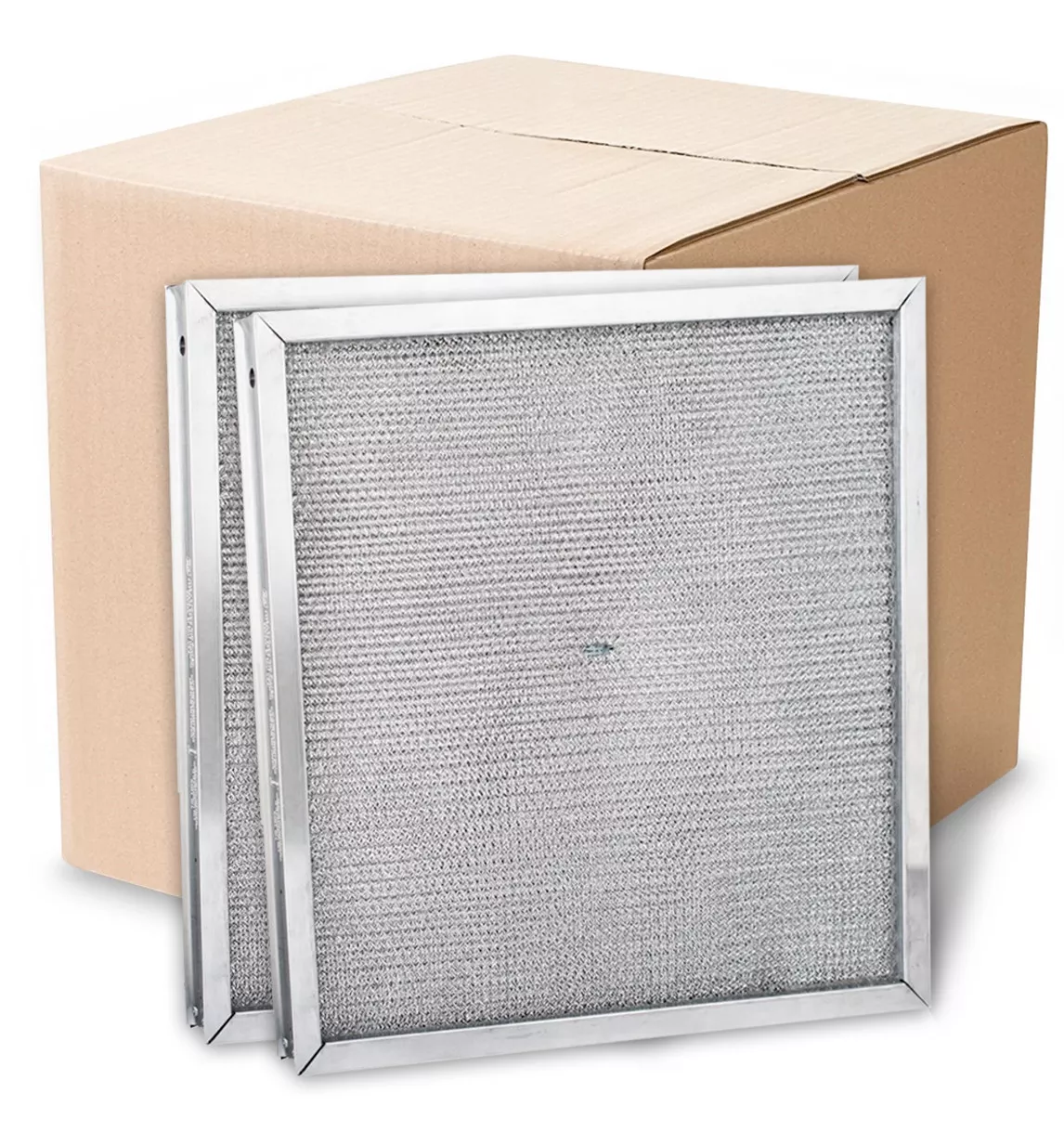

- Includes 2″ MV EZ Kleen Metal Mesh Filters
Additional Features:
- 0-150°F Discharge Temp Control • Heating Activation Based On Intake Set Point • Manual Blower Mode.Use with MUA
- VFD factory mounted and wired in unit control vestibule
- ESV152N02YXB571 – Variable Frequency Drive – 2 HP Max., 200/240 V, Single or Three Phase Input, 7.0 A Max., NEMA 1 Enclosure, with 2RJ-45 FOR MODBUS –
- VAV (Variable-Air-Volume) Wiring Package for Commercial Fans Manual Speed Control Variable Frequency Drive Included
- Motorized Back Draft Damper 22.75″ X 24″ for Size 2 Standard & Modular Heater Units w/Extended Shaft, Standard Galvanized Construction, 3/4″ Rear Flange, Low Leakage, LF120S Actuator Included
Heated (or “Tempered”) make up air units are recommended anywhere the winter temp falls below freezing. This includes the northern half of the United States (and all of Canada).
