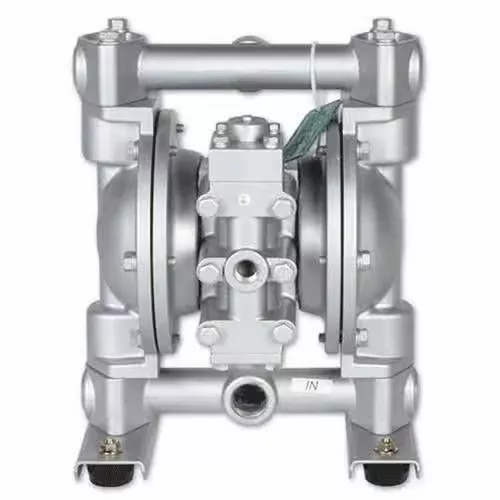

NDP-20 Series Diaphragm Pump
Delivers a maximum flow rate of 31.7 GPM. The diameter of both the pump’s inlet and outlet measure 3/4 inch. The pump is able to reach a maximum of 180 degrees. Aluminum is used to prevent corrosion in both the air motor and the pump’s body.Please see the Yamada Corrosion Guide under “Manuals” for chemical compatibility.
Specifications:
- Inlet (in): 3/4
- Outlet (in): 3/4
- Max Pressure: 100 PSI
- Max Flow (gpm): 31.7
- Max Temp: 180
- Max Solid (in): 1/16
- Valve Type (in): 3/8
- Air Motor Material: Aluminum
- Body Material: Aluminum
- Elastomer Material: Santoprene
Applications:
- Water Circulation
- Liquid Transfer
- Spray Systems
- Harsh Chemicals
- Solvent Prescence
