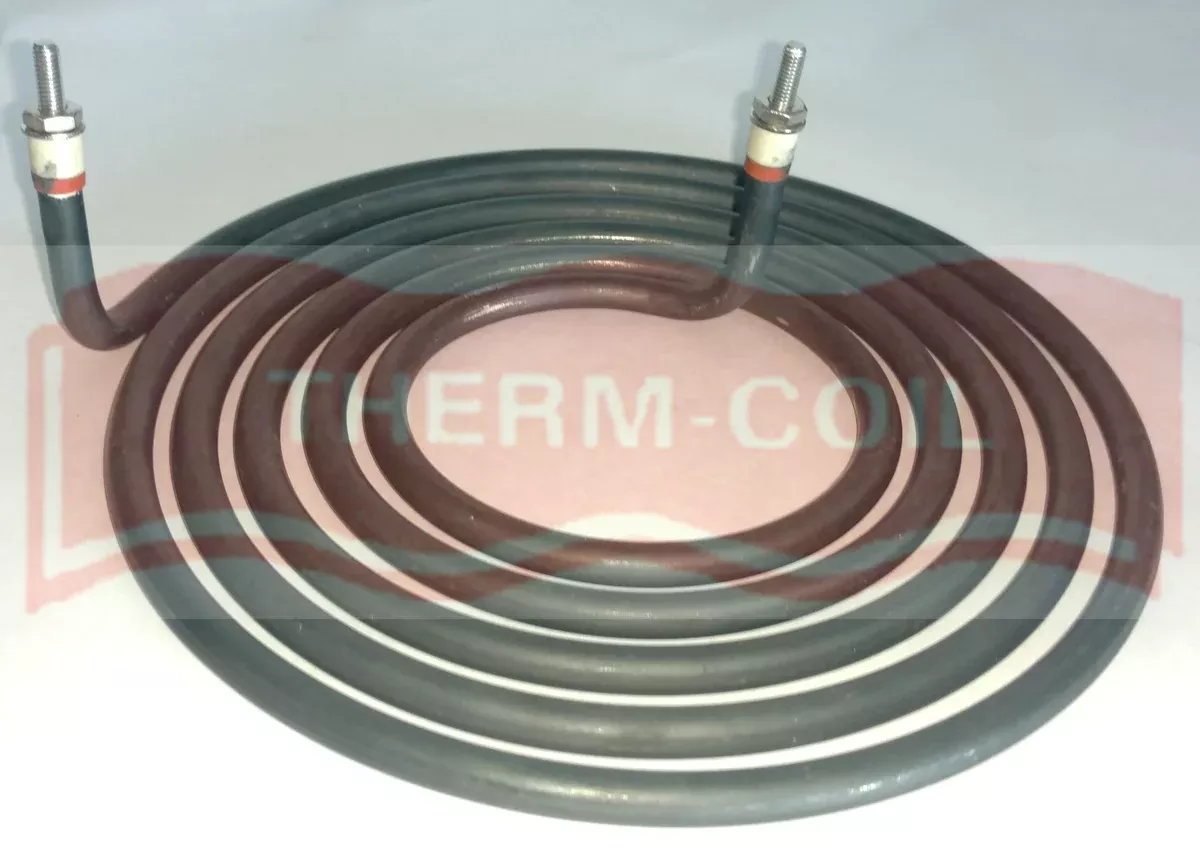

Therm Coil Drawing No.: 384A-1030-001 Therm Coil Model No.: VH-E-110911-1
- 2,000 W @ 208 V Rating
- Overall Size: 8-3/8″ (Diameter) x 1-3/4″ (Element Height Without Terminals)
- 8-32 Stud Terminal Connections With Hardware
- High-Performance Incoloy sheath element for long life
Replacement For Part Numbers:
Vulcan Hart 110911-1, 89565, 4520-01-047-3796, 010473796, 1109111, 01-047-3796, 4520010473796, 010473796
Used In Vulcan Hart Restaurant Range Model Numbers:
E-36 Series (6 elements used), and E-60 Series (10 elements used)
