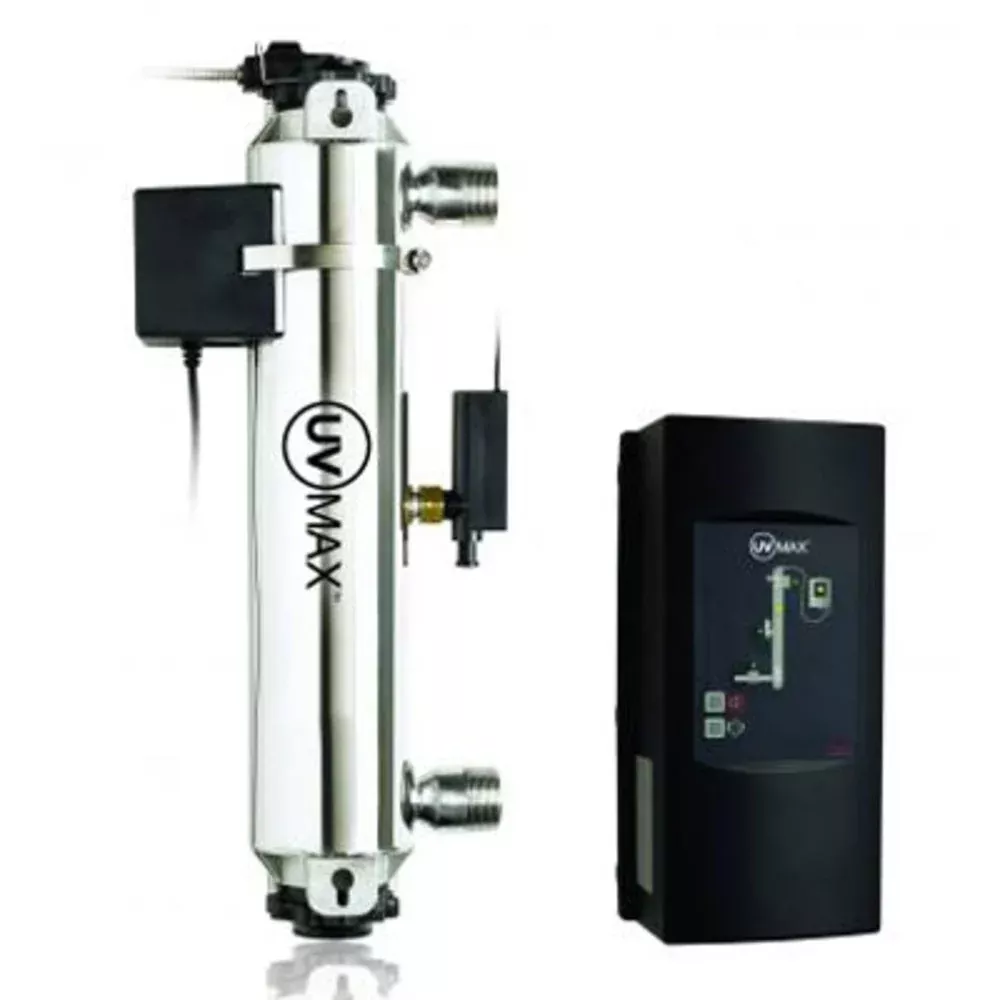

The Viqua UVMax G Plus UV System reduces harmful contaminants such as bacteria, virus and microorganisms. Viqua UVMax G Plus is a whole house ultraviolet disinfection water treatment system which offers 19 gpm water flow rate.
Specifications:
- Type 316 stainless steel reactor
- Viqua UVMax G Plus UV purification water system has color coded plug and play connections
- UV intensity monitor with diagnostic test
- CoolTouch fan
- Flow Rate:19 gpm
- Inlet/Outlet:Combo 1.25″ NPT, 1″ MPT
- Voltage:120-240V (50-60Hz)
- Chamber Material: 316L SST
- Power Consumption:120 watts
- Chamber Dimensions:21.3″ x 3.9″
This system is compatible with the 602854 Trojan Lamp and the 602974 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for G Plus includes:
- Trojan Lamp (1): 602854
- Trojan Quartz Sleeve (1): 602974
- Trojan O-Rings (2): 2233
