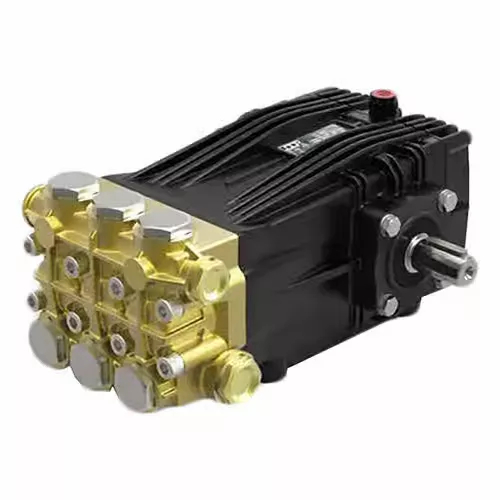

Udor CK-Series Solid Shaft Pump
The Udor CKC3820SL pump features heavy-duty brass construction, a heat-treated crank shaft, and an extra deep back cover for increased oil capacity to provide worry-free operation. 24mm keyed solid left-hand shaft makes it easy to integrate into your system. With a flow of up to 10 GPM at up to 3000 PSI, it provides reliable and consistent performance perfect for power washing, car wash, agricultural, and general purpose applications.
Features
- Left-side shaft
- Reinforcing ring on inlet and discharge ports
- Heat treated crank shaft
- Industrial quality tapered roller bearings
- Deep back cover for increased oil capacity
- 35 oz. capacity vented oil bath crank case
Specifications
- Max GPM: 10 GPM
- Max Pressure: 3000 PSI
- Power Requirement: 19.5 HP Electric
- Pump Speed: 1450 RPM
- Inlet Port: 3/4″ BSP-F
- Outlet Port: 1/2″ BSP-F
- Maximum Temperature: 160 degF
