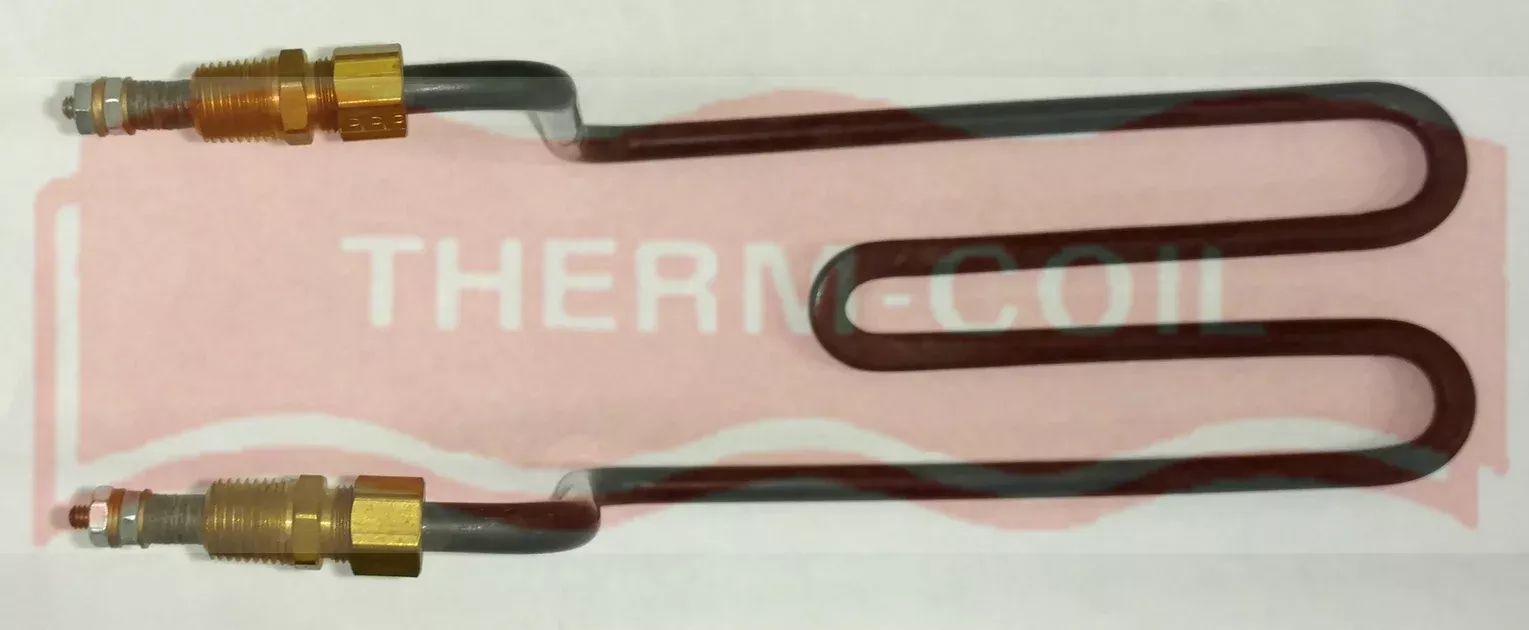

Therm Coil Drawing No. 383K-1136-001
Description
- Application: Replacement element compatible with Otto Braun Bread Proofers
- High-Performance Incoloy Sheath Elements For Long Life
- Rated 1,000 W @ 120 V
Technical Specifications
- Element Sheath Material: Incoloy
- Quantity Of Elements: 1
- Voltage: 120 V
- Wattage: 1,000 W
- Length Inside Vessel: 9-31/64” ±1/8″
- Terminal Connections: 8-32 Stud Terminals (Hardware Included)
- Compression Fittings: (2x) 1/4″-18 NPTF (Hardware Included)
- Overall Dimensions Excluding Terminal Connections (LxWxH): 9-7/8″ x 3-1/4″ x 4-1/2″, With 2-11/16” Center-to-Center Terminals (flexible)
