Product Description

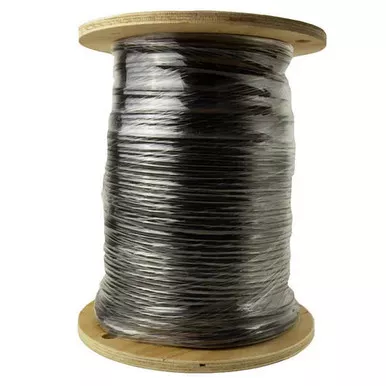

Southwire 55266 Low-Voltage Landscape Lighting 16-2, 250 and 500 foot spools
-20°C to +60°C, 150 Volts Rated, UL ULEC and CSA LVLL
APPLICATIONS• Outdoor Low-Voltage Underground Landscape Lighting Cable is designed for landscape, security, and outdoor accentlighting applications that not to exceed 150 volts.• Landscape Lighting Cable is Sunlight Resistant sutable for Direct Burial Stranded Copper Conductor Black PVC Insulation/Jacket
CONSTRUCTION• Two fully annealed bare stranded copper conductors• Insulation/Jacket: Premium-grade PVC -20°C to +60°C• Final assembly: Insulated/Jacketed conductors duplexed in a flat construction for easy tear-down during installation• Color: Black is standard Available in white or brown, but subject to minimum order quantity
STANDARDS Meets UL Subj 1493 cUL standards C22.2 35, CSA class 5834-01UL Underground Low-Energy Circuit Cable for Outdoor LightingC(UL) Low-Voltage Landscape Lighting (LVLL)EU RoHS DirectiveLegend: XX AWG X/C UNDERGROUND LOW ENERGY CIRCUIT CABLE SUNLIGHT RESISTANT 60C 150V (UL) CSA LVLL 60C 30V FT1, FT2
ApplicationOutdoor Accent LightingLandscape LightingSecurity LightingSunlight ResistantDirect Burial
Low Voltage Lighting Specifications
