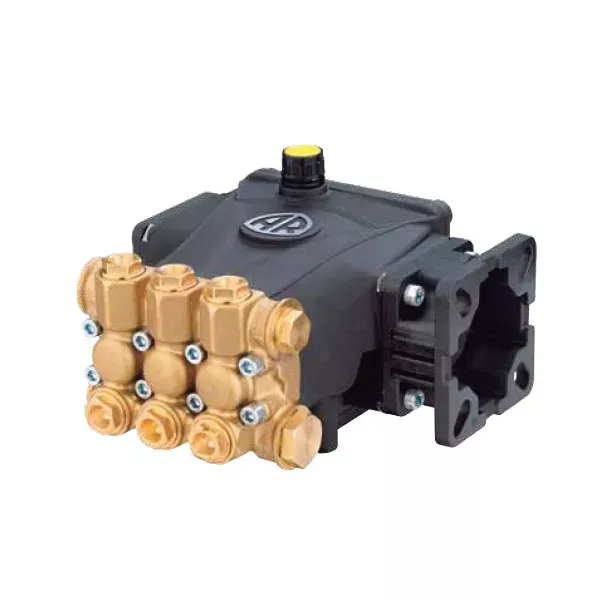

The RCV2.5G25D-F7-SX AR (Annovi Reverberi) pump is an oil filled Triplex Plunger Pump used in various pressure washers.
The RCV2.5G25D-F7-SX plunger pump is rated at up to 2.5 GPM at 2500 PSI. Direct drive system provides connection to most 3/4″ shaft 4.3 HP and above engines and spins at 3400 RPM.
The hollow shafted pump includes a built-in pressure control valve, and chemical injection system.Pumps with “SX” suffix feature inlet and outlet tubes that are rotated 180 degrees from the “standard” model pump. “Standard” model pumps inlet and outlet tubes face forward away from user’s feet.”SX” model pump inlet and outlet tubes face rearward toward user’s feet.Max GPM = 2.5Max L/Min = 9.5Max PSI = 2500Max Bar = 170Power EBHP = 4.3Bore DIA MM = 15Stroke MM = 5.6Crankshaft ID Stamp = 9Weight LBS. = 11
