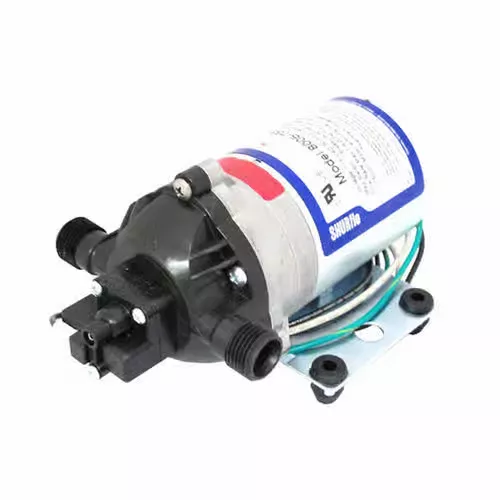

8005-733-155 Diaphragm Pump
The SHURflo 8005-733-155 is from the 8000 Series of pumps widely used for car wash, agriculture, and industrial applications. This electric pump has a Santoprene diaphragm, built-in check valve, and a demand switch. It has a maximum flow rate of 1.5 GPM and a maximum pressure of 60 PSI. This compact pump can be mounted in any position and is designed for long trouble-free life.
Specifications and Features
- Flow Rate: 1.5 GPM
- Voltage: 115VAC
- Amps: 0.31-0.54 Amps @ 0-60 PSI
- Maximum Pressure: 60 PSI
- 45 PSI internal bypass
- Maximum Liquid Temperature: 170° Fahrenheit
- Inlet Connection: 1/2″ male NPT
- Outlet Connection: 1/2″ male NPT
- 8000 Series
- Santoprene diaphragm
- Demand Switch
- Can run dry without damage
- Self priming up 8 vertical feet
- Built-in check valve
- UL Recognized
- NSF and CSA listed
