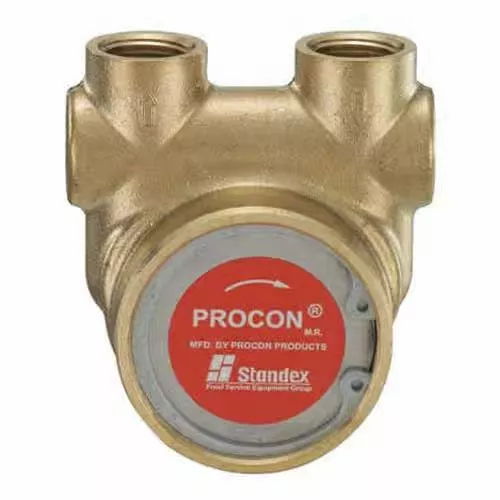

Series 2 Rotary Vane Pump
This Procon Series 2 brass model has the same features as the Series 1, with the exception of the integral strainer. Primarily used for espresso/coffee applications, and welding is the secondary application. Other applications include carbonated water, reverse osmosis, beer chillers, pesticide systems, and solar applications.
Dimensions: 3.56″ x 3.49″ x 3.86″
- Clamp-on pump with 0.188″ double flat drive
- Brass housing
- 100 GPH
- Nitrile elastomer
- Clockwise/slinger rotation
- Standard clearance
- Plastic, high temperature, solid valve
- 100-150 PSI pressure range; Default setting at 130 PSI
- Dry weight: approximately 2.5 lbs.
- Port size: 3/8″ NPT inlet and outlet
- Procon part 102A100F31BB
