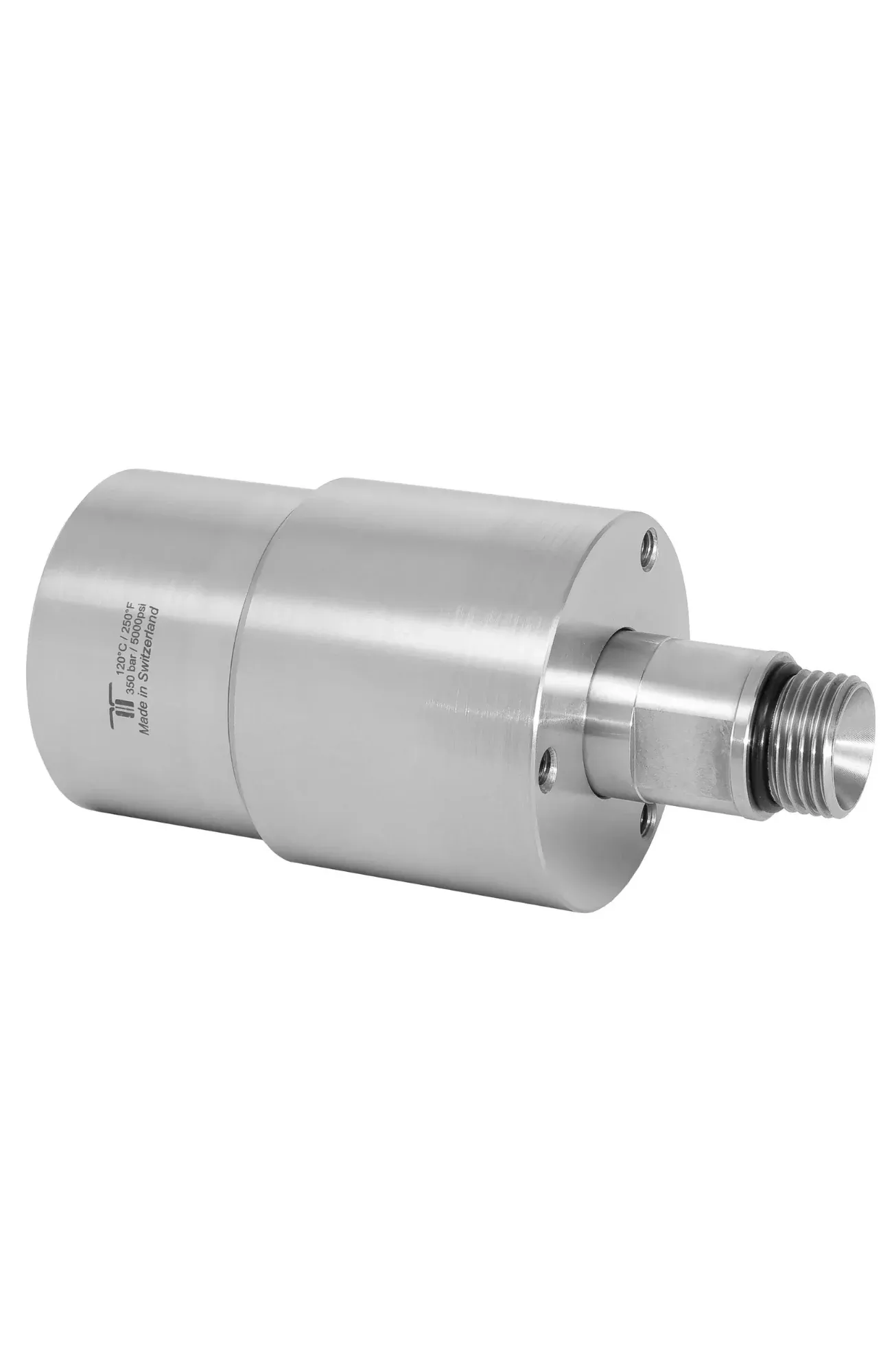

The Mosmatic 55.168 DYDI Swivel is a high-performance stainless steel swivel designed for high-pressure, high-flow, self-rotating applications. Ideal for surface cleaners, spray bars, and parts washers, this model offers maximum strength and reliability in the most demanding cleaning environments.
Built with a triple bearing system – including two radial ball bearings and one thrust ball bearing – the swivel ensures ultra-smooth rotation, even at high RPMs. A durable carbide seal system protects internal components, while integrated weep holes offer early warning of seal wear or failure. Rated for up to 7300 PSI, 250°F, and 2000 RPM, the DYDI series offers higher pressure capacity than standard DYCI swivels, making it the ideal solution for industrial-grade performance.
Applications
-
Surface cleaners for commercial and industrial use
-
High-pressure parts washers
-
Rotating nozzles and spray arms
-
Self-rotating cleaning systems
-
Robotic and automated pressure washing tools
Key Features
-
Thread In: 3/8″ NPT Female
-
Thread Out: G3/8″ Male
-
Material: Full stainless steel construction
-
Triple Bearing System: 2 radial + 1 thrust bearing for high-speed operation
-
Seal Type: Durable carbide seal for long service life
-
Weep Holes: Provide early detection of seal failure
-
High Pressure Capability: Rated up to 7300 PSI
-
High-Speed Performance: Handles up to 2000 RPM
-
Temperature Resistance: Withstands up to 250°F
-
Compact & Reliable: Engineered for efficient space-saving installations
Specs
Pressure: 7300 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/8″ NPTF
Thread Out: G3/8″ M
Nominal Width (NW): 1/4″
Wrench Size (SW1): 0.87″
Wrench Size (SW2): 0.63″
Diameter (D1): 2.36″
Diameter (D2): 1.10″
Length 1 (L1): 2.28″
Length 2 (L2): 1.46″
Length 3 (L3): 0.47″
Length 4 (L4): 0.12″
Weight: 23.0 oz
