Right Shaft Plunger Pump

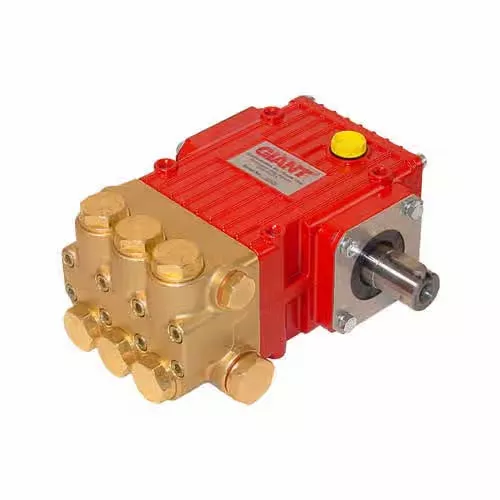

The Giant Pumps P209RE1D is an American-made positive displacement pump designed for direct or belt driven applications. It has a right-mounted shaft, a 7/8″ coupler, and a 56C electric flange. This triplex plunger high pressure pump has reciprocating plungers and an aluminum crankcase with a sight glass and a vented dipstick. Choose quality Giant products for your car washing systems, pressure washing business, and other high pressure applications.
1750 RPM Specifications:
- Max Flow: 1.5 GPM; 5.7 L/min
- Continuous Pressure: 2000 PSI; 140 bar
- Intermittent Pressure: 2500 PSI; 175 bar
3450 RPM Specifications:
- Max Flow: 2.7 GPM; 10.2 L/min
- Nominal Pressure: 2000 PSI; 140 bar
- Intermittent Pressure:
- 2000 PSI; 140 bar
Common Specifications:
- Max Temperature: 160 °F; 70°C
- Plunger Diameter: 0.47″; 12mm
- Stroke: 0.39″; 10 mm
- Maximum Inlet Pressure: 145 PSI; 10 bar
- Crankshaft Diameter: 0.98″; 24 mm
- Crankcase Oil Capacity: 7.5 fluid ounces; 0.22 L
- Crankcase Oil Capacity (extended): 9.0 fluid ounces; 0.27 L
- Weight: 11.7 lbs; 5.3 kg
- Inlet Ports: (2) 1/2″ BSP
- Discharge Ports: (2) 3/8″ BSP
- Shaft Rotation: Top of Pulley Towards Manifold
- Shaft Mounting: RightKey
Component Materials:
- Special brass manifold
- Solid ceramic oxide plungers
- High grade stainless steel valves
- Nitrile seals with fabric reinforcement
- Aluminum die-cast gear end
WARNING: This product can expose you to chemicals including Lead, which is known to the State of Californiato cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
