4.0 GPM, 1450 RPM, 3350 PSI

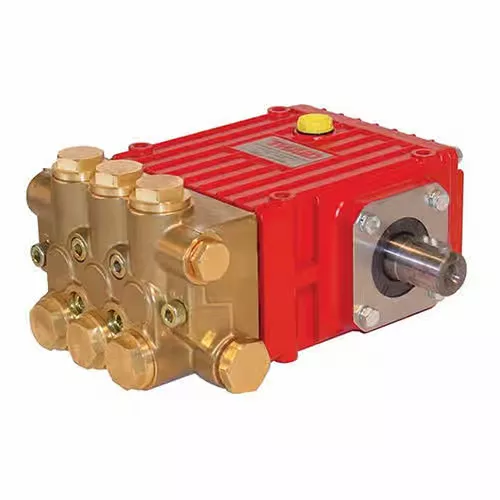

This P316R pump features an aluminum crankcase with sight glass and a vented dipstick. It has a forged, ground, and polished crankshaft. Other features include: bronze connecting rods, hardened stainless steel plunger bases, solid ceramic plungers, nitrile seals, and stainless steel valves.
Specifications:
- Maximum inlet pressure: 145 PSI
- Maximum temperature: 160 degrees Fahrenheit
- Plunger diameter: 0.71″
- Stroke: 0.56″
- Crankshaft diameter: 24 mm
- Crankshaft rotation: top of pulley towards manifold
- Right shaft
- Inlet ports: (2) 1/2″ BSP
- Discharge ports: (2) 3/8″ BSP
- Crankcase oil capacity (short): 14.2 fl. oz.
- Crankcase oil capacity (extended): 17.0 fl. oz.
- NPSH Required: 19 ft. head
Materials:
- Manifold: forged brass
- Plungers: solid ceramic oxide
- Valves: high grade stainless steel
- Seals: nitrile with fabric reinforcing
- Gear end: aluminum die-cast
Repair Kits:
- Plunger Packing Kit 09119
- Valve Assembly Kit 09116
- Oil Seal Kit 09144
