3.8 GPM – P300 Series Pump

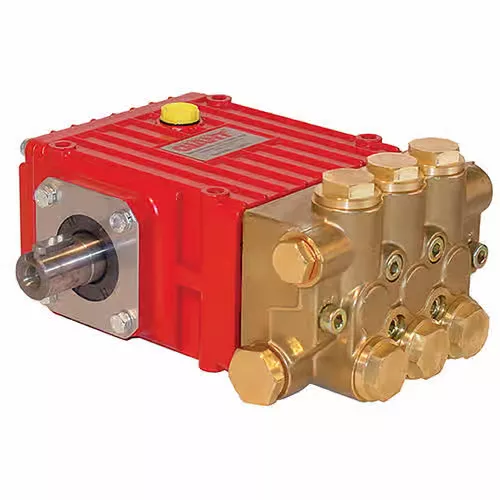

Giant Pumps P314 is a right-shaft triplex plunger pump that is designed for direct or belt drive applications. High-quality components provide reliable function and longevity. Some of these components include a forged brass manifold, die-cast aluminum crankcase, solid ceramic oxide plungers, high-grade stainless steel, and nitrile seals to name a few. The pump is engineered to produce a maximum pressure of 3500 PSI and a flow rate of 3.8 GPM. Giant proudly produces their pumps in the United States.
Specifications:
- Flow: 3.8 GPM
- Maximum Discharge Pressure: 3500 PSI
- Crankshaft Speed: 3450 RPM
- Power: 9.2 HP
- Intermittent Flow: 3.8 GPM
- Intermittent Discharge Pressure: 4000 PSI
- Intermittent Power Consumption: 10.5 HP
- Max Temperature: 160 °F
- Inlet Port Size: (2) 1/2″ BSP
- Discharge Port Size: (2) 3/8″ BSP
- Plunger Diameter: 12 mm
- Stroke: 14.1 mm
- Maximum Inlet Pressure: 145 PSI
- Shaft Side: Right
- Crankshaft Diameter: 24 mm
- Crankshaft Rotation: Top of Pulley Towards Manifold
- Crankshaft Mounting: Either Side
- Crankcase Oil Capacity: 14.2 fl. oz.
- Weight: 16 lbs.
Component Materials:
- Manifold Material: Forged Brass
- Crankcase Material: Aluminum Die-cast
- Plunger Material: Solid Ceramic Oxide
- Valve Material: High-Grade Stainless Steel
- Seal Material: Nitrile with Fabric Reinforcing
