2.4:1 Reduction Ratio

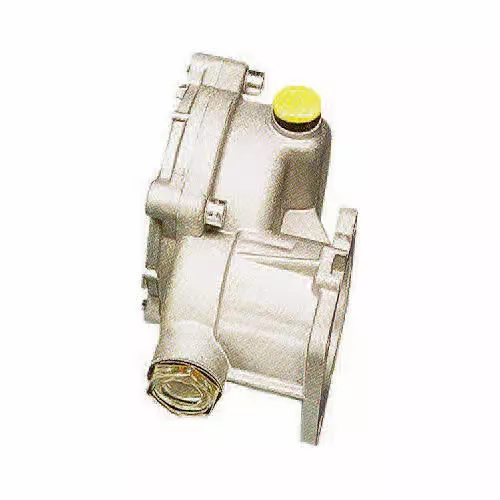

The General Pump ZGR0750 gear reducer is perfect for small gas engines that have (4) 5/16-24 threaded holes on a 3.62″ diameter bolt circle, in accordance with SAE specification J609A. It eliminates the need for belts and pulleys, and it can be mounted on either a right or a left hand drive pump! Enjoy quiet operation thanks to large, helical cut hardened steel gears, as well as a compact mounting base design.
This gear reducer is for use on the following General Pump models: T521, T531, T701, T711, T721, T731, T911, T981, T991, and TS1371.
- Maximum engine HP: 5
- Maximum engine speed: 3500 RPM
- Maximum pump speed: 1450 RPM
- Compatible engine shaft diameter: 3/4″
- Maximum shaft extension: 2.375
- Reduction ratio: 2.4:1
- Oil capacity: 5.5 oz.
- Oil type: SAE 90W hypoid gear lube
- Mount on left or right side
- General Pump item ZGR0750
- Weight: 4.5 lbs.
