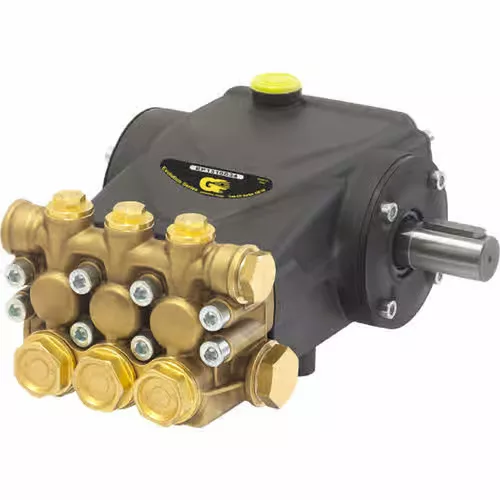

Evolution Series Plunger Pump – Left Shaft
Evolution EP Series Triplex Plunger Pumps have advanced features, the next generation for high pressure industrial pup applications. Enhancements include a forged brass manifold, patent pending plunger guide bushing, new plunger fastening system, optimized outlet valves, solid ceramic plungers, duali lip oil seal and a dual diameter plunger guide! Dimensions: 9.5″ X 8.38 X 5.1″Specifications:
- Max Volume: 4.2GPM
- Max Discharge Pressure: 3045PSI
- Max Pump Speed: 3400RPM
- Max Inlet Pressure: 125 PSI
- Max temp: 165 degrees F
- Solid 24 mm left shaft
- Horsepower: 7.1
- Oil capacity: 15oz.
- Plunger bore: 15mm
- Stroke: 8mm
- 100% Made in Italy
