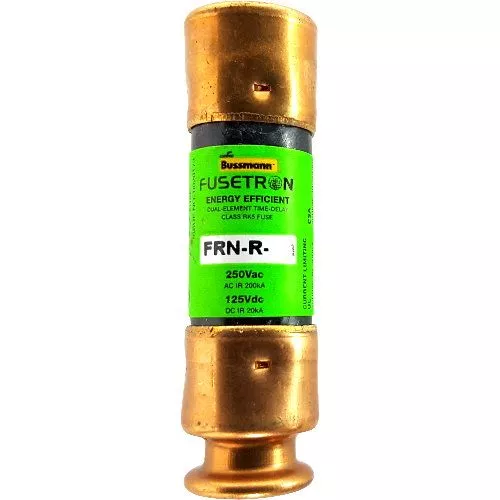

FRN-R-3/10

FRN-R 3/10 Amp, 250V, Class RK5, Bussmann FRN-R-3/10, FRN-R 3/10A | aka: Fusetron FRN-R-3/10, Cooper Bussmann FRN-R-3/10, UPC: 051712507035

Description:

• 3/10 Amps, 250 Volts AC
• UL Class RK5
• Dual Element
• Time Delay
• Physical Size: 0.56″ x 2″
• AC Voltage Rating: 250
• Interrupting Rating: 200,000 AIC @ 250 VAC
• DC Voltage Rating: 125
• Interrupting Rating: 20,000 @ 125 VDC
• UL Listed, Class RK-5, Guide JDDZ, File E4273
• CSA Certified, C22.2 No. 248.12, Class 1422-01, File 53787
• Related Products:
• Fuse Blocks
• Box Lugs (Al/Cu 2-14)
• Adder: 20305R 1 Pole: 20306R 2 Pole: 20307R 3 Pole: 20308R
• Screw Connector (Cu 10-14)
• 1 Pole: 20316R 2 Pole: 20317R 3 Pole: 20318R
• Pressure Plate (Cu 10-14)
• 1 Pole: 20326R 2 Pole: 20327R 3 Pole: 20328R
• Fuse Reducers
• 60 Amp to 30 Amp: R632
• 100 Amp to 30 Amp: R132
