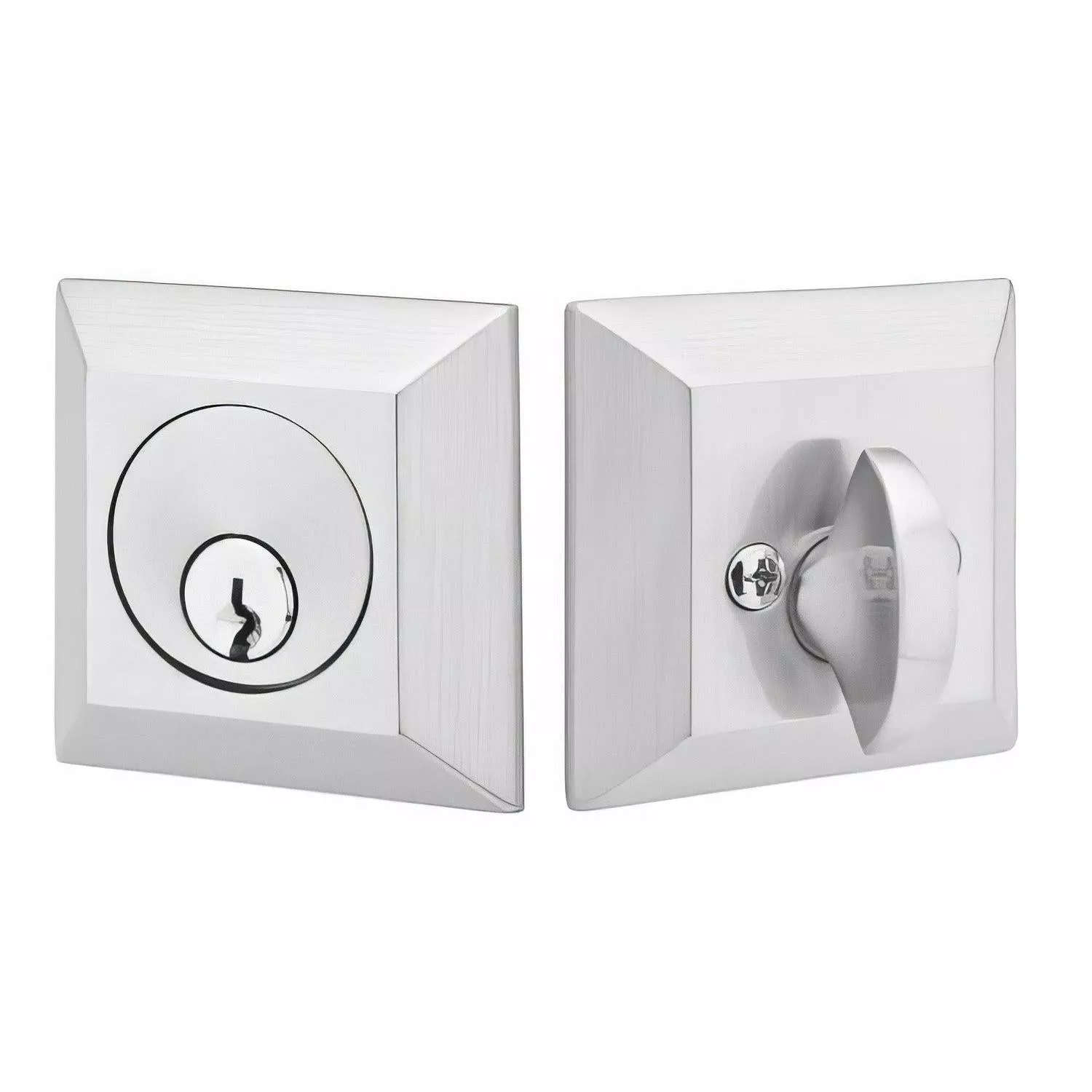

Emtek 8478US Quincy Single Cylinder Deadbolt
The Emtek 8478US Quincy Single Cylinder Deadbolt is a single cylinder deadbolt for entry-door security. Uses an exterior keyed cylinder and an interior thumbturn.
Construction is listed as Brass. The listed backset is 2-3/8 to 2-3/4. It fits the listed 1-3/4 to 2-1/4 door-thickness range. Review door preparation, dimensions, keyway, handing, and included components before ordering.
Specifications
- Model: 8478US
- Function: Single Cylinder Deadbolt
- Material: Brass
- Collection: Classic Brass
- Projection: 1-1/4
- Width: 2-1/2
- Height: 2-1/2
- Backset: 2-3/8 to 2-3/4
- Door Thickness: 1-3/4 to 2-1/4
- Cross Bore: 2-1/8
- Edge Bore: 1
- Handing: Left Hand / Right Hand / Reversible
- Latch Faceplate: Round Corner / Square Corner
