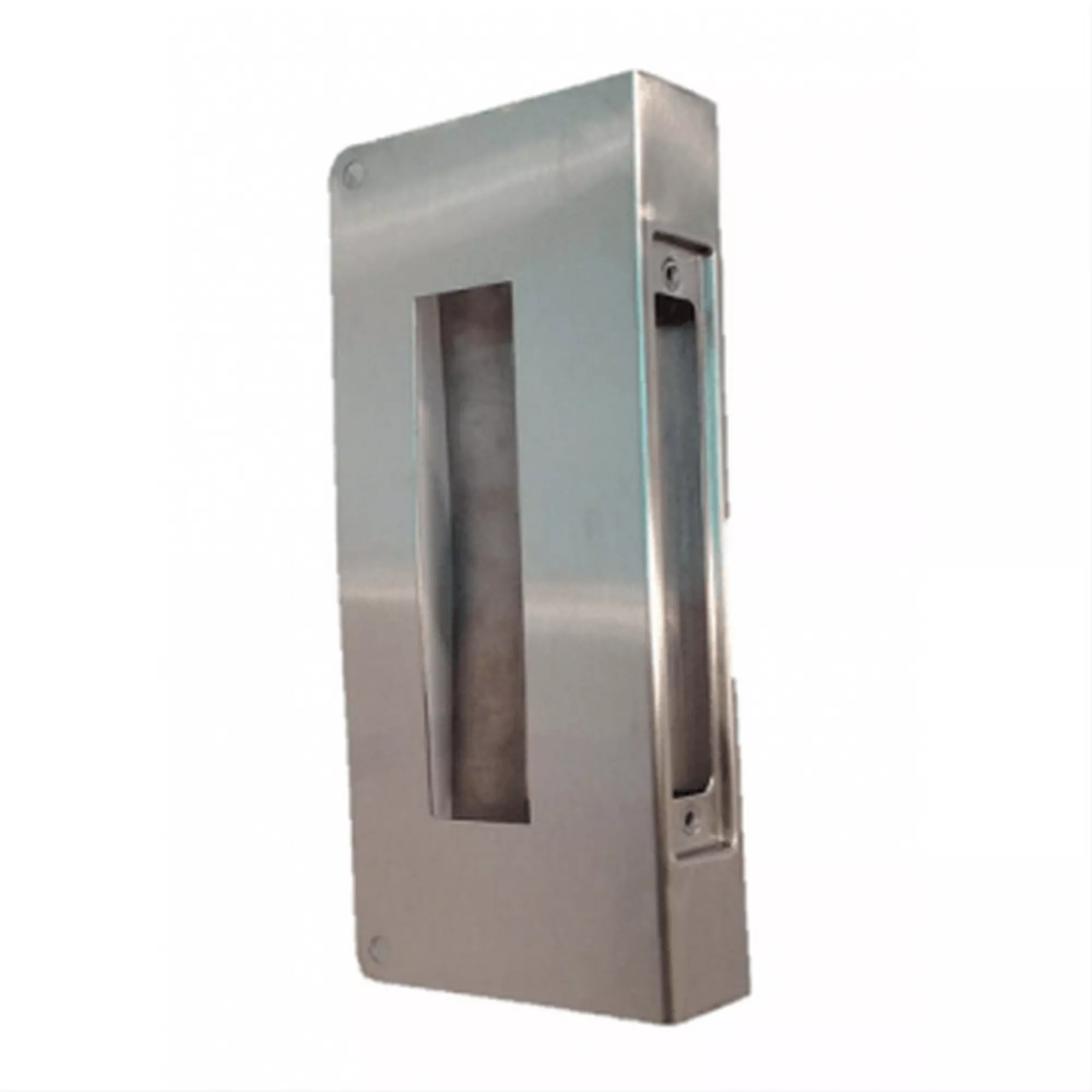

The Don-Jo CW514 Wrap Around is a wrap around door plate for door hardware applications. Shared product specifications apply across available finish or configuration variants when variants are present.
Wrap Around Door Plate
- Brand: Don-Jo
- Model / SKU: Don-Jo-CW514
- Product Type: Wrap Around Door Plate
- Material: Steel
- Gauge: 22 (.032)
- Detail: Available in 4 Finishes
- Backset: 2-3/4″
- Dimensions: 5″ x 12″
- Door: 1-3/4″
- Rectangle size: 1-5/8″ x 7-5/16″
- Trim Screws: 1/4-20 x 1 1/2″ Sex Nut fasteners
- Trim Screws: 2 ea. 1/4-20 x 3/4″ MS Truss Head fasteners
- Latch Screws: 2 ea. 12-24 x 1/2″ FHMS fastener
