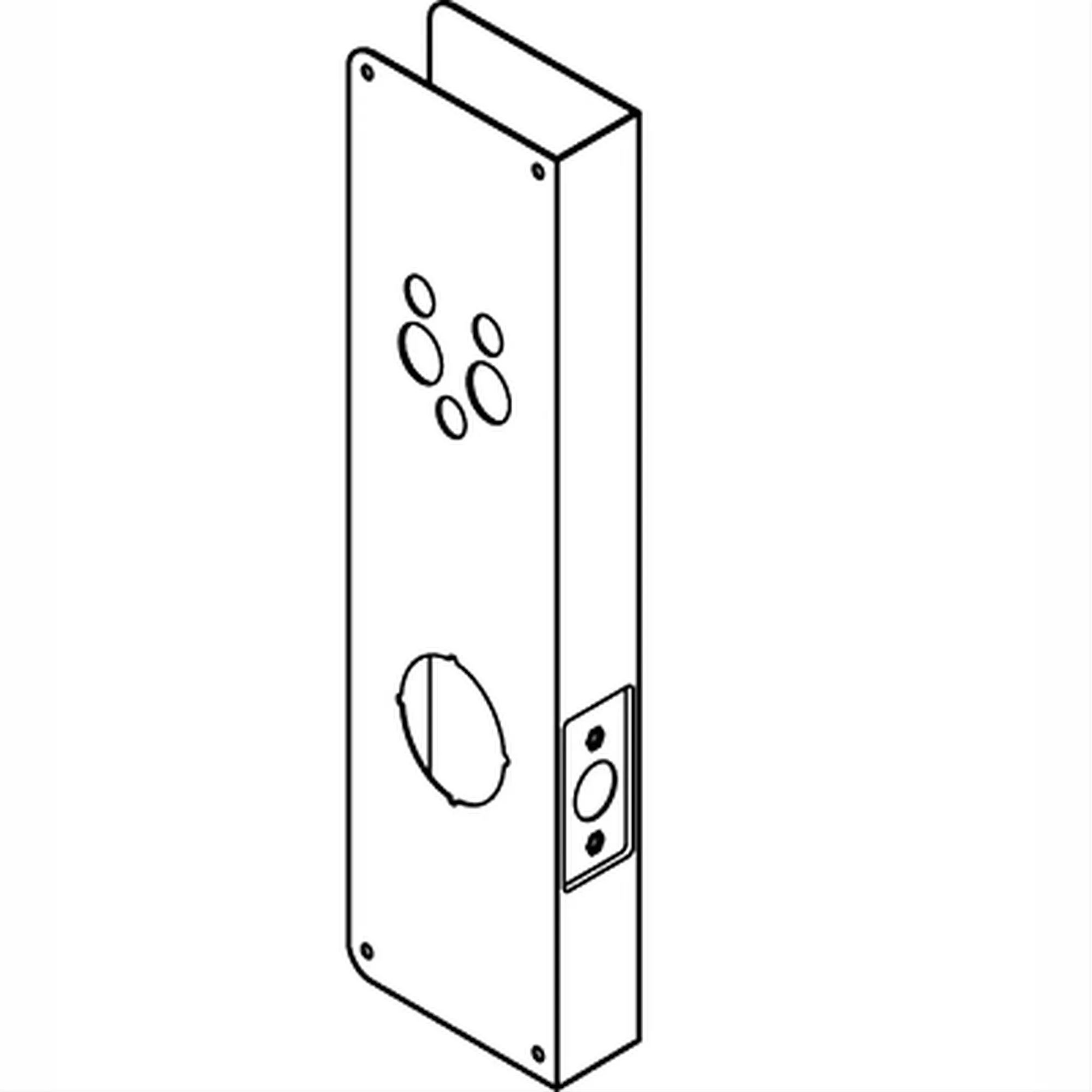

The Don-Jo CW5100 Wrap Around is a wrap around door plate for door hardware applications. Shared product specifications apply across available finish or configuration variants when variants are present.
Wrap Around Door Plate
- Brand: Don-Jo
- Model / SKU: Don-Jo-CW5100
- Product Type: Wrap Around Door Plate
- Material: Steel
- Gauge: 22 (.032)
- Detail: Available in 3 Finishes
- Backset: 2-3/4″
- Dimensions: 5-1/8″ x 15″
- Door: 1-3/4″
- Trim Screws: 4 ea. 8 x 3/4″ Phillips Truss Head fasteners
- Latch Screws: 2 ea. 8-32 x 1/4″ Flat Head (per latch) fastener
- Detail: One Year Limited Manufacturer’s Warranty
