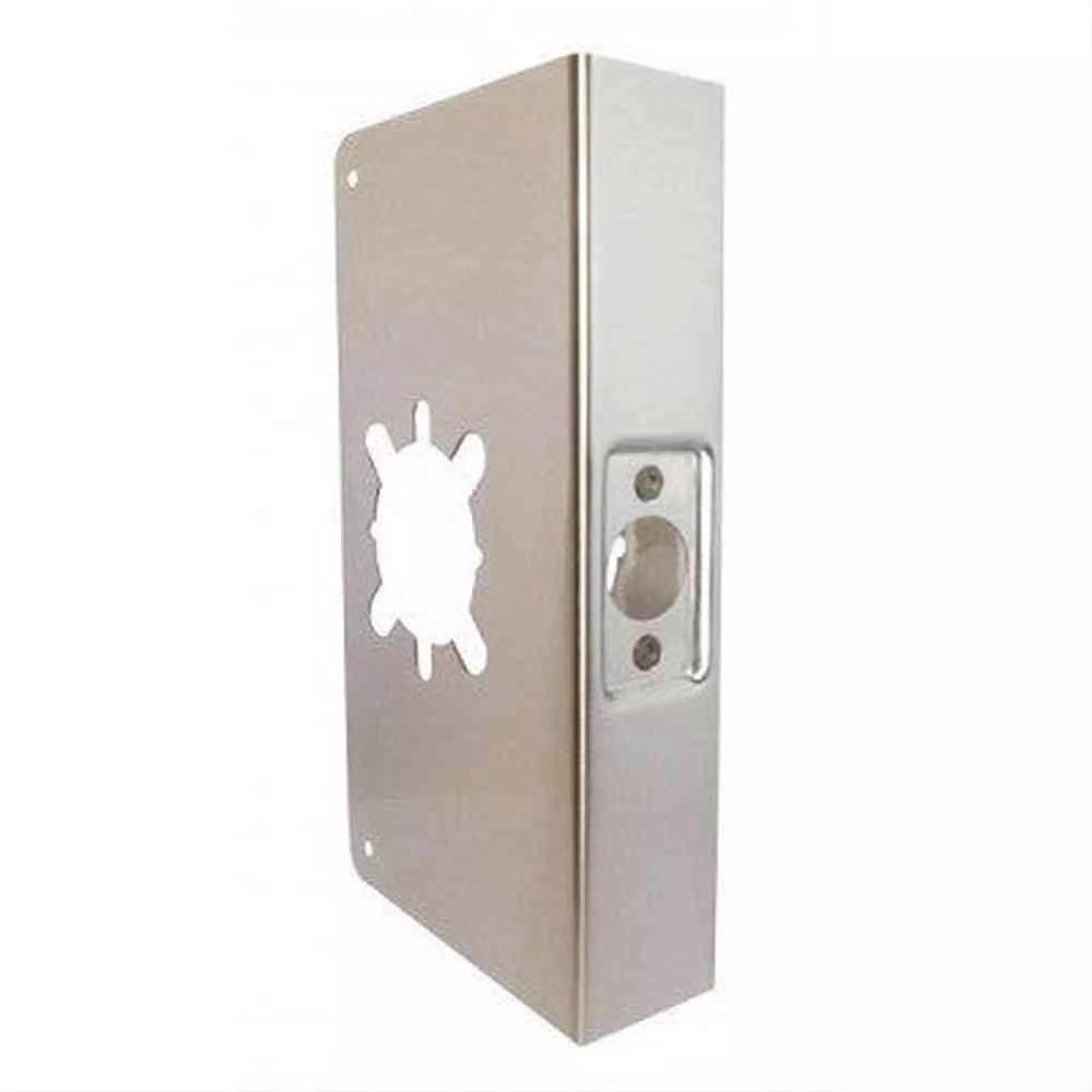

The Don-Jo CW122 Classic Wrap Around Plate is a wrap around door plate for door hardware applications. Shared product specifications apply across available finish or configuration variants when variants are present.
Wrap Around Door Plate
- Brand: Don-Jo
- Model / SKU: Don-Jo-CW122
- Product Type: Wrap Around Door Plate
- Material: Steel
- Gauge: 22 (.032)
- Detail: Available in 3 Finishes
- Detail: Steel brass plated material
- Backset: 2-3/4″
- Dimensions: 4-3/4″ x 12″
- Door: 1-3/4″
- Trim Screws: 4 ea. 8 x 3/4″ Phillips Truss Head fasteners
- Latch Screws: 2 ea. 8-32 x 1/4″ Flat Head (per latch) fastener
- Detail: Classic Wrap Around Plate for cylinder door locks with 2-1/8″ hole and 12″ height
Additional Don-Jo Information
View Don-Jo Manufacturer Warranty
Shop All Don-Jo Products
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
