Therm Coil Drawing No.: 313G-1100-004

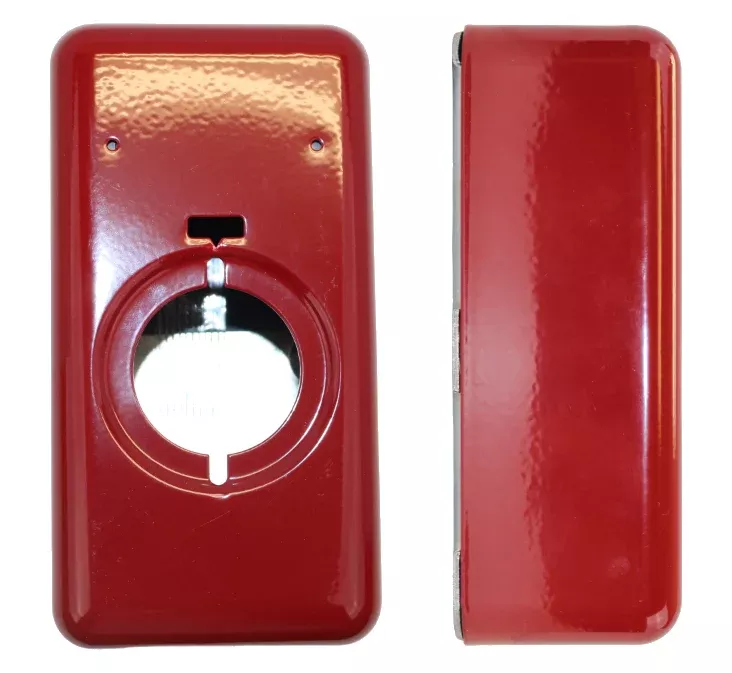

- Our D1 thermostat enclosure is a wall-mounted general purpose enclose that has mounting holes spaced to fit our D1-series thermostats.
- This enclosure is also fully compatible with Robertshaw 5000 model series thermostats (D1 & D18 models), as well as others.
- Insulation paper is pre-placed to protect the thermostat terminal connections.
- Slotted cut-out for the capillary to exit the enclosure.
- Cut-out for pilot light visibility and to act as an “off” indicator.
- Hardware included for both thermostat and enclosure mounting.
- Overall Dimensions: 5-3/4″ H x 3″ W x 2″ D
