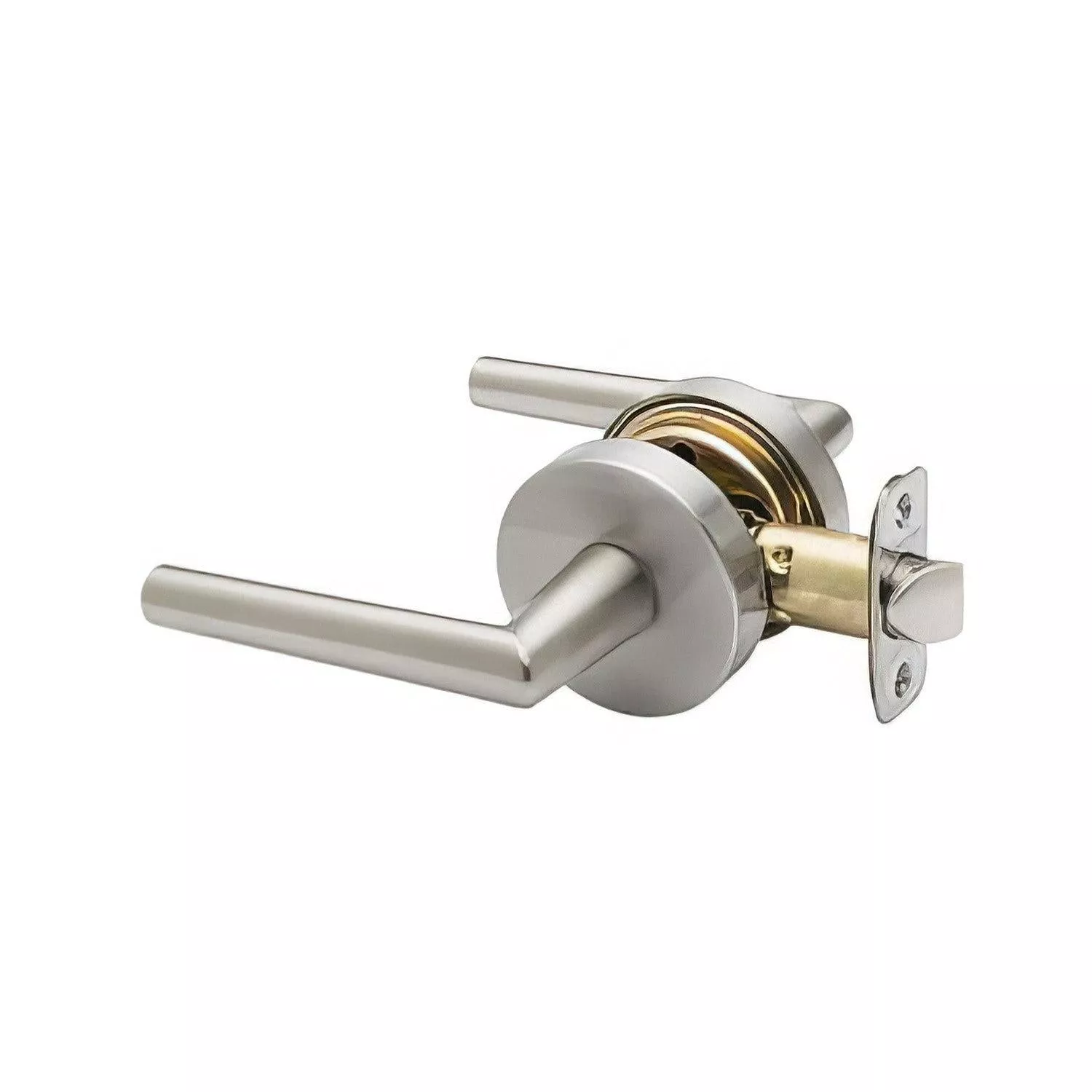

The Copper Creek ML2231 Modern is a Grade 3 residential privacy door lever with a modern straight lever and round rose.
The inside control locks the levers for privacy; the inside lever releases the lock for egress, and the exterior side provides emergency release. It is intended for bedroom, bathroom, and other interior doors that need temporary privacy.
Product Details
- Model: ML2231
- Design: Modern
- Function: Residential Privacy Door Lever
- Configuration: Complete privacy lockset with interior and exterior levers, adjustable latch, strike, emergency-release provision, and mounting hardware.
- Material: zinc
- Performance: ANSI/BHMA Grade 3
- Cycle rating: 200,000 cycles
- Rose: 2-5/8 round rose
- Handing: Non-Handed / Reversible
- Locking control: Interior push-button privacy control
- Door thickness: 1-3/8 to 1-3/4
- Adjustable backset: 2-3/8 or 2-3/4
- Cross bore: 2-1/8
- Edge bore: 1
- Standard latch faceplate: 1 round corner
- Standard strike: 2-3/4 full-lip round-corner strike
Compatibility: Confirm door thickness, 2-1/8 cross-bore preparation, backset, latch faceplate, strike preparation, and the required lock function before ordering. Square-corner and drive-in latch formats are optional configurations and should not be assumed unless selected.
