| Dependable and powerful fans are the engines driving your ventilation systems. AirStorm™ fiberglass fans deliver consistent and reliable air flow for your hog barn ventilation needs. |
| Model | Shutter | Rough Opening (Interior) | RPM | Drive | Speed | HP | |
| AS-14EDDLP | 14″ Fan | Plastic | 20″W x 20″H | 1725 | Direct | Variable | 1/3 |
| A 115/230V 1/3 HP motor powers the AirStorm 14″ fan. Stainless steel motor mounts and hardware furnish superior corrosion resistance. | Motor-matched, compsite fiberglass props outlast plastic or aluminum. Resin transfer fiberglass housings feature UV stabilizers to last in the harshest environmental conditions. |
|
| |
| White PVC shutters feature full-length spring steel rods instead of plastic pins in the ends which lock into a heavy PVC frame with reinforced corners. True airfoil shutter vanes reduce air drag. *This shutter is included with the fan |

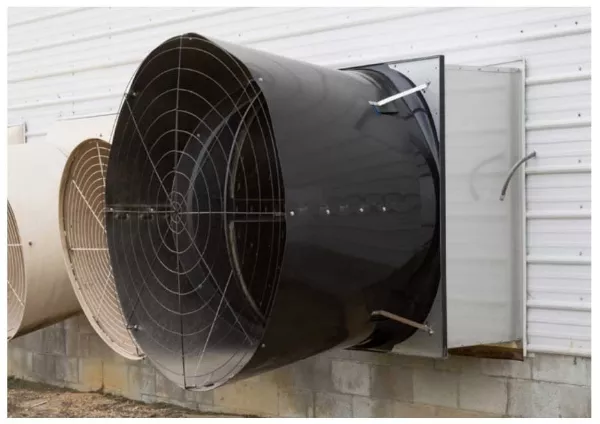

Shown with the optional discharge cone. See RELATED PRODUCTS below to add discharge cone. |
| MODEL | BESS LAB TEST | CFM 0.0″ | CFM/Watt @0.00″ SP | CFM 0.05″ | CFM/Watt @0.05″ SP | CFM 0.10″ | CFM/Watt @0.10″ SP | CFM .0.15″ | CFM/Watt @0.15″ SP |
| W/cone | 18231 | 2340 | 11.3 | 2200 | 10.3 | 2070 | 9.7 | 1890 | 8.8 |
| No cone | 18230 | 2100 | 9.5 | 1990 | 8.9 | 1860 | 8.4 | 1690 | 7.6 |
