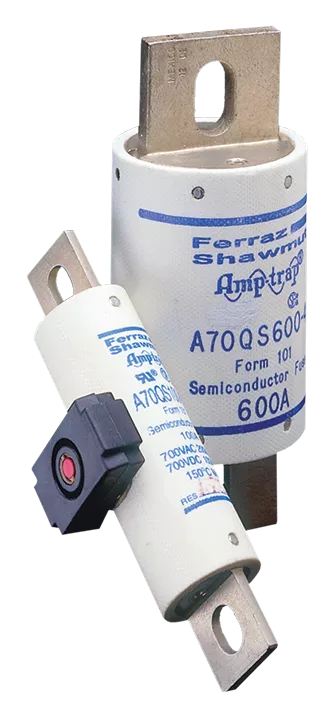

A70QS 600 Amp, 700V, Semiconductor, Ferraz A70QS600-4, A70QS 600A | aka: Mersen A70QS600-4, Ferraz Shawmut A70QS600-4, UPC: 782001946876
Description:
- 600 Amps, 700 Volts AC / DC
- Semiconductor Fuse
- Extremely Fast Acting
- Current Limiting
- Equivalent to Buss FWP Style
- Physical Size: 2″ x 5.09″
- AC Voltage Rating: 700
- DC Voltage Rating: 700
- AC Interrupting Rating: 200,000 AIC
- DC Interrupting Rating: 100,000 AIC
- Very Low I&178t For Improved Protection of Equipment
- Superior Cycling Ability, Low Watts Loss
- UL Recognized Component, AC/DC UL file E60314
- AC: Guide No. JFHR2
- DC Tested to UL Standard 198L Parameters (35-800A)
- CSA Certified File LR 12636
- Fuse Block
- Stud Mount (1 Pole): P266A
