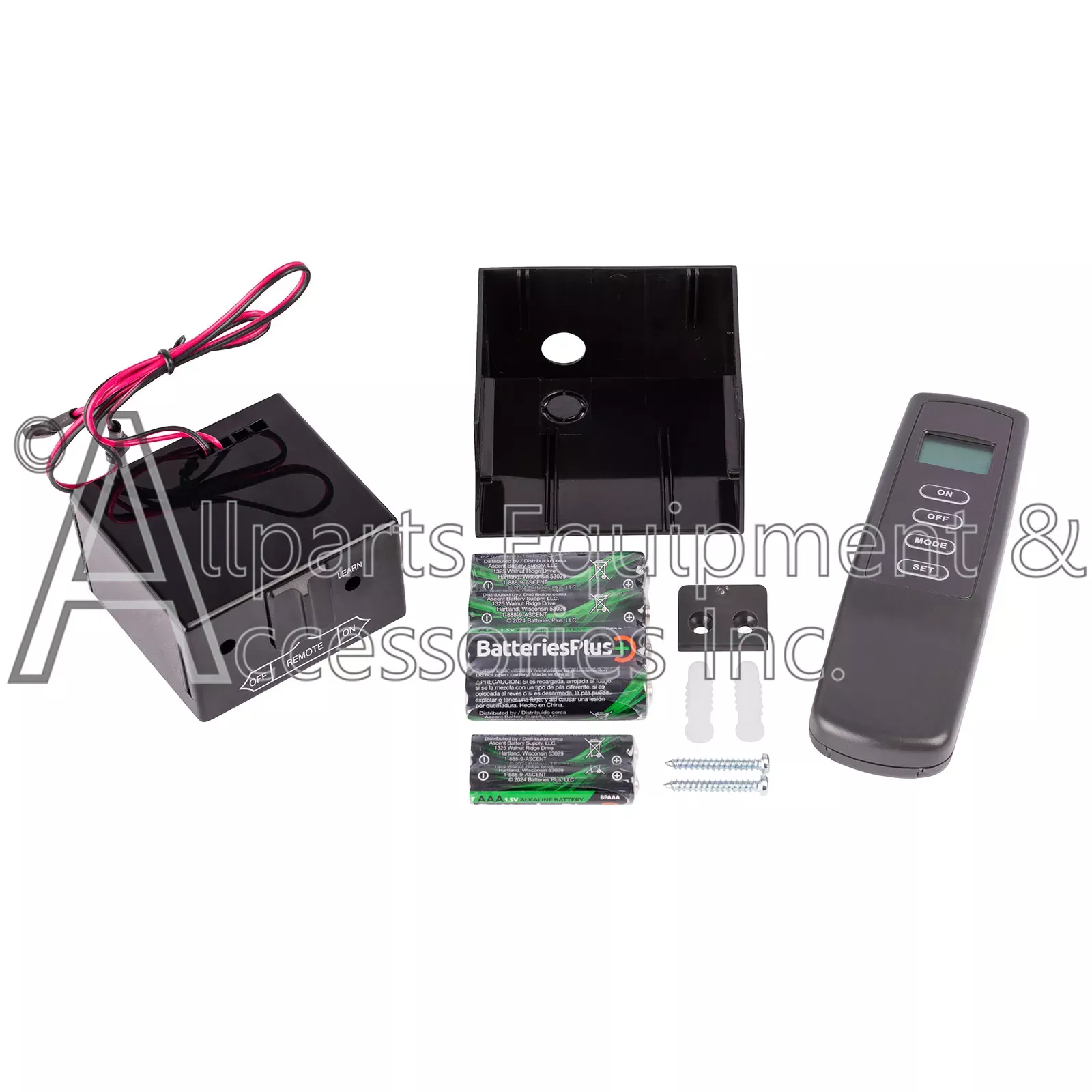

121190-01 remote control SYSTEM offers the user a battery-operated remote control to power the latching solenoid such as those used with the AF-1115 American Flame gas valves used in some decorative gas logs, gas fireplaces, wall heaters and other gas heating appliances.
The circuit uses the battery power from the receiver to operate a latching solenoid. The circuit has reversing polarity software which reverses the positive (+) and negative (-) output of the receiver’s battery power to drive solenoid ON/OFF FLAME or open/close.
The SYSTEM is controlled by the remote transmitter. The transmitter operates on a 12 Volt battery made specifically for remote controls and electronic lighters. Before using the transmitter install the 12 volt (A-23) battery in the battery compartment.
It is recommended that ALKALINE batteries always be used for longer battery life and maximum operational performance.
The transmitter has ON/OFF/REMOTE functions that are activated by pressing either button on the face of the transmitter. When a button on the transmitter is pressed, a signal light on the transmitter illuminates to verify that a signal is being sent. Upon initial use, there may be a delay of three seconds before the remote receiver will respond to the transmitter. This is part of the system’s design. If the signal light does not illuminate, check the position of the transmitter’s battery.
Desa International Models:
NY100
NY101
NY102
NY103
NY104
NY105
NY106
NY107
NY114
NY115
NY116
NY117
